C1 Small designed for vineyards with strong mechanical contacts
Ideal for both new installations and replacements
Main advantages
- Profiling without any angle in order not to damage during mechanical contacts
- Cross section 40 x 40 mm – 8 mm (1.57 x 1.57 ” – 0.31 “)
- Very high degree of mechanical strength-Strong ability to install installation in difficult
- ground thanks its shape-open face voluntarily reduced 8 mm
- Strong ability to install in difficult ground thanks its shape -open face voluntarily reduced 16 mm
- Optimal compromise between flexibility and high mechanical strength
- Side 40 mm to optimize the stability of the trellising
- Special shape of the hooks to avoid closure during the mechanical harvest
- Wire in contact with the internal structure of the post
- Double hook for the wires during the soil cultivation

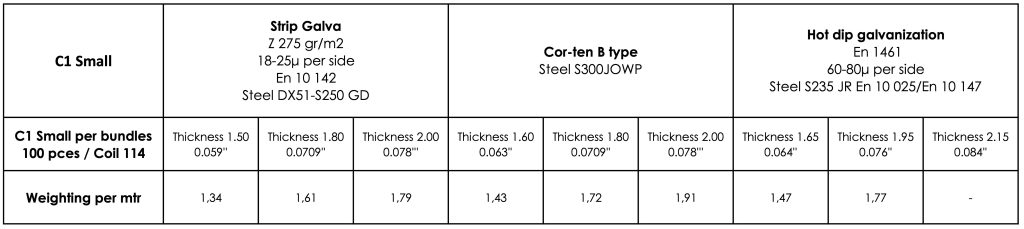

Galvanization
Type of hooks (option A or N on demand)
- A Type
- To easily remove and replace the moving wires
- N Type
- Wires in a fixed position
- H Type
Installation advice
- Cap and mini piston on request
- Plant the post during the wet season
- Drive 25-30 % of the post length into the ground
- Deep rip soils during site preparation
- Drill a pilot hole in difficult ground
- Adaptation of the inter-distance between the posts in particular (windy area-high production in
- hectoliter-high degree of mechanization)
