C5 End Post manufactured for an heavy production and significant height above ground
Main advantages
- Profiling without any angle in order not to damage during mechanical contacts
- Very high mechanical strength
- Cross section 68 x 55 – 2.67’’ x 2,16’’ with drilling in the center of the post to allow a perfect alignment
- Lateral drilling to position the tension roller
- Cor-ten aspect adapted to wine tourism regions
- Sides section 68 mm (2.67’’ ) to optimize the stability of the trellising

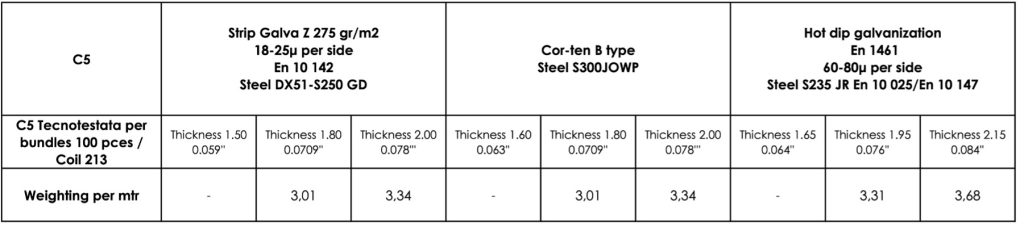

Galvanization
Installation advice
- Cap and mini piston on request
- Plant the post during the wet season
- Drive 25-30 % of the post length into the ground
- Deep rip soils during site preparation
- Drill a pilot hole in difficult ground
Recommendations
- Row from 100 to 150 mtr 1.8 or 1.95 mm
- Row more 150 mtr 2.0 or 2.15 mm
